Nano Fine Particle & Dust monitors for Combustion Gas & Emmission
PM 10 PM2.5 PM1 PM 0.1 ~ PM 0.007
We introduce instrument of Dekati Ltd that is a global synonym for fine particle in emission gas monitor and precision diluting equipment.
Go to World Famous Manufacturer Deakti Ltd

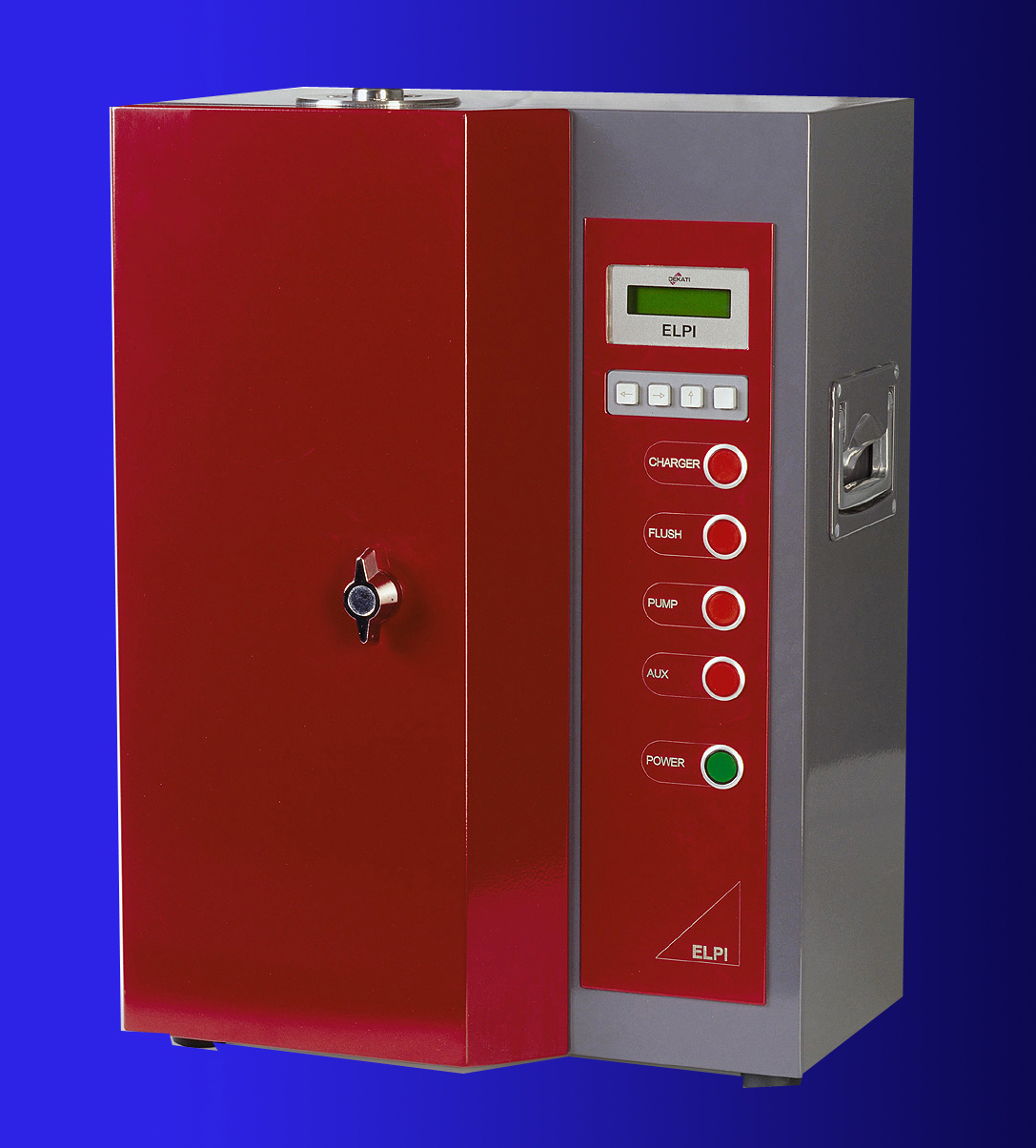

Model ELPI (Partcle size distribution)
- Measuring range: 0.007 - 10 micron
- Measurement of dustin vehicle emission gas
- For engine development
- Postprocessor
- Performance and quality management of bag filter and dust collecting apparatus and final test
- Measuring PM in emission gas
- Real-time measurement
- Measured particle range:0.03- 10 micron
- Separation of 12 stages impactor
- Sample flow: 30 L/m
- Sample calibration: 25mm
- Low pressure range : 100mbar
- Pump flow: 21m3/h at 100mbar
- Temperature: 5-40 degrees C
- Humidity: 0-60% RH
- Reaction time: within 5 seconds
- Data gathering: PC operation
- Size: 570 x 420 x 260 mm
- Weight: 37 kg
Combustion & Automotive Emmission
Model DMM 230 : Mass gauge for dust in hot and moisturized emission gas
-
measuring range : 0.03 - 2.5 micron
- measuring mass of dust in automotive emission gas
- For engine development
- postprocessor
- quality management and final test for the performance of bag filter and dust collector
- measuring PM in emission gas
- real-time measurement
* Catalog(pdf file)
Fine Particle Sampler 4000 :
Emission gas preprocessing and precision diluting control equipment
-
: 1:2 - 1: 200
- Diluted Sample flow : 30-300 L/m
- for measuring dust in automotive emission gas
- for engine development and emission gas research
-
post-processing gas monitor and dust measurement at the same time
- quality management and final test for the performance of bag filter and dust collector
- measuring PM in emission gas
- Real-time measurement
* Download (pdf file)

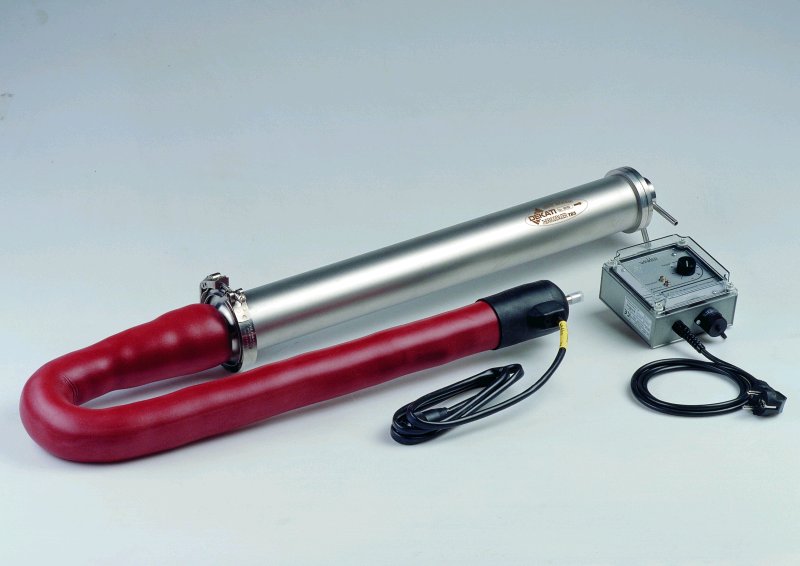

Thermodenuer & temperature controller :
샘
Volatile organic compound filter for preprocessing sample gas
-
- Control temperature : 180 degrees C
- Filtering volatile organic compound in diesel automotive emission gas
- Effect : Measuring actual concentration of particle dust under 0.1 micron
- Flow : 10-20 L/m
- Image of combining this equipment and temperature controller
- For hot and moisturized emission gas

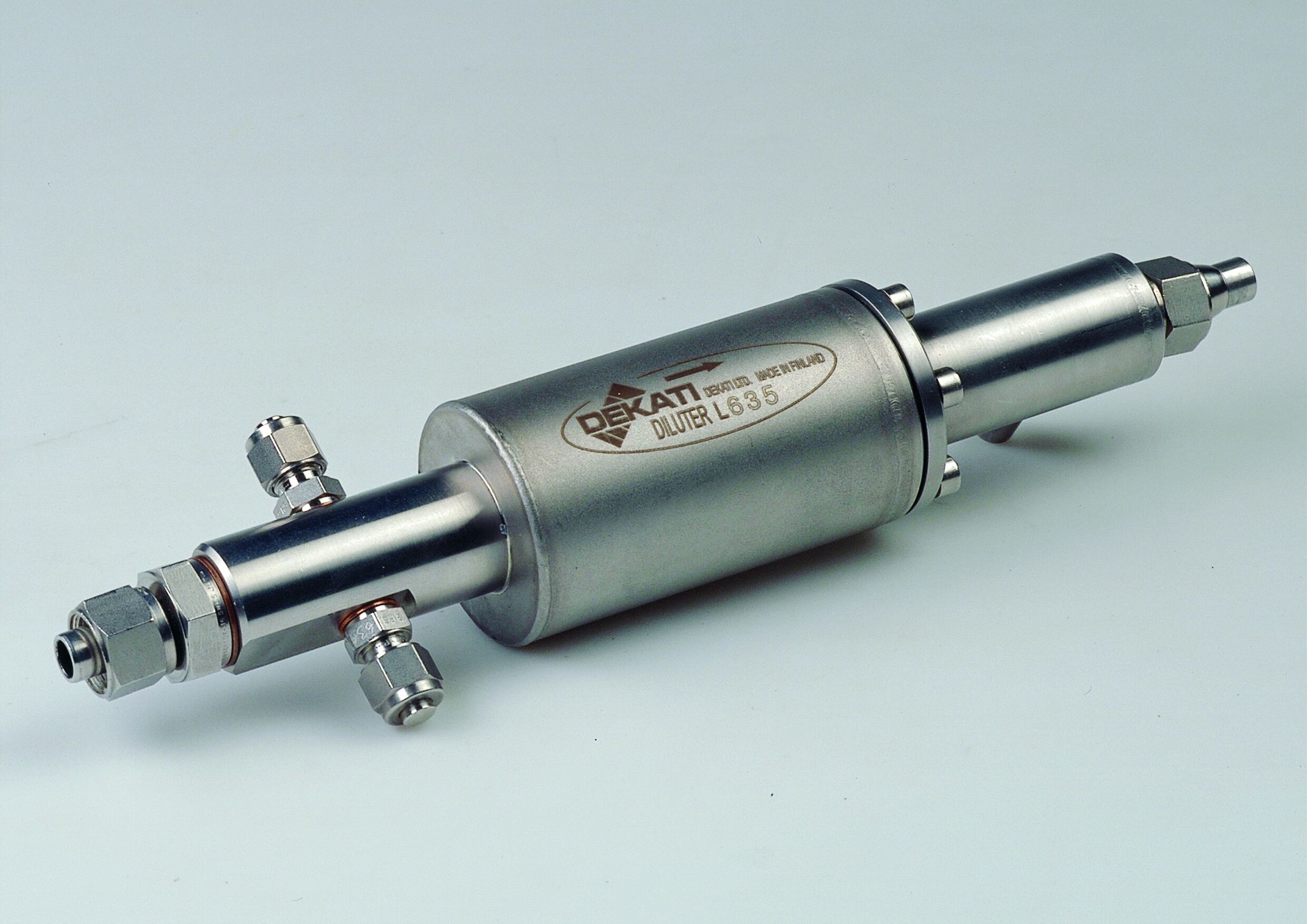

Hot & Moisturized Emmission Sample Dilutor
Precision diluting equipment for analyzing sample gas or dust in emission gas
- Diluting rate 1:8
- Precision dilution of hot and moisturized sample gas
- Operational temperature : 450 degrees C
- Heating Matte setting up heating matte sample temperature to 200 degrees C
- Sample flow: 6 l/m
- In the event of double connection, diluting rate of 1:64 is available
- Diluting rate is fixed value in the event of requiring optional configuration- FDS 4000
PM 2.5, PM1, PM 0.5 PM 0.2 3 stages particle detector for automotive emission dust

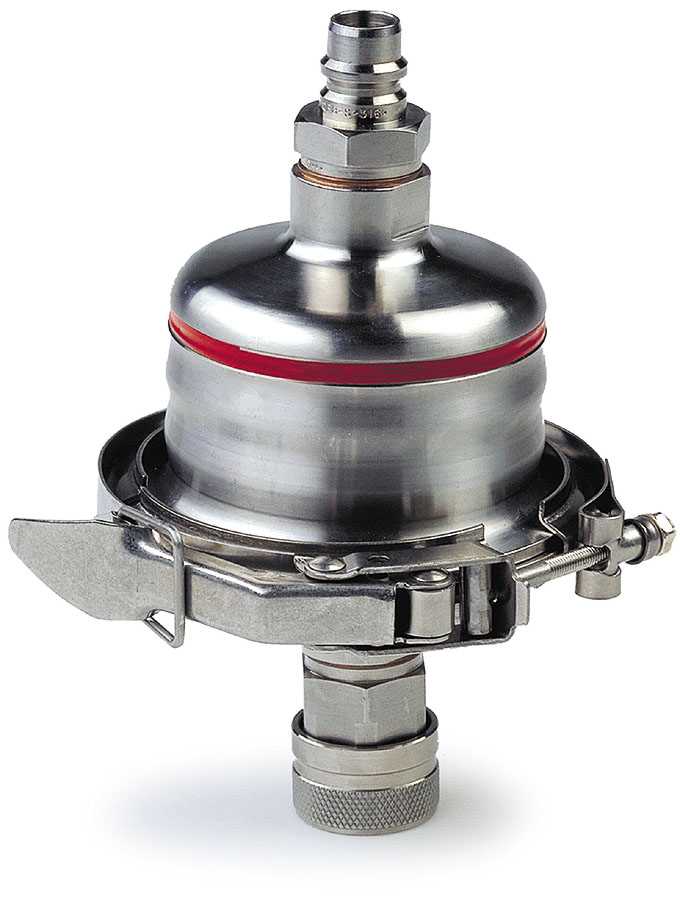

Model DGI -1570 Gravimetirc Impactor
It collects only dust in PM 0.2 - 2.5 at the same time with a impactor
- Inlet/outlet ISO 1/2 "
- Collecting file: Aluminum foil
- Backup filter: Teflon/Glass Fiber
- Lightweight: 1.5 kg
- Sample flow: 70 L/m
- Operational temperature range: 0-200 degrees C
- Optional specification based on sample flow
- Size: 110 x 100 mm
PM10,PM2.5.PM1 Gravimetric Impactor dust in the air

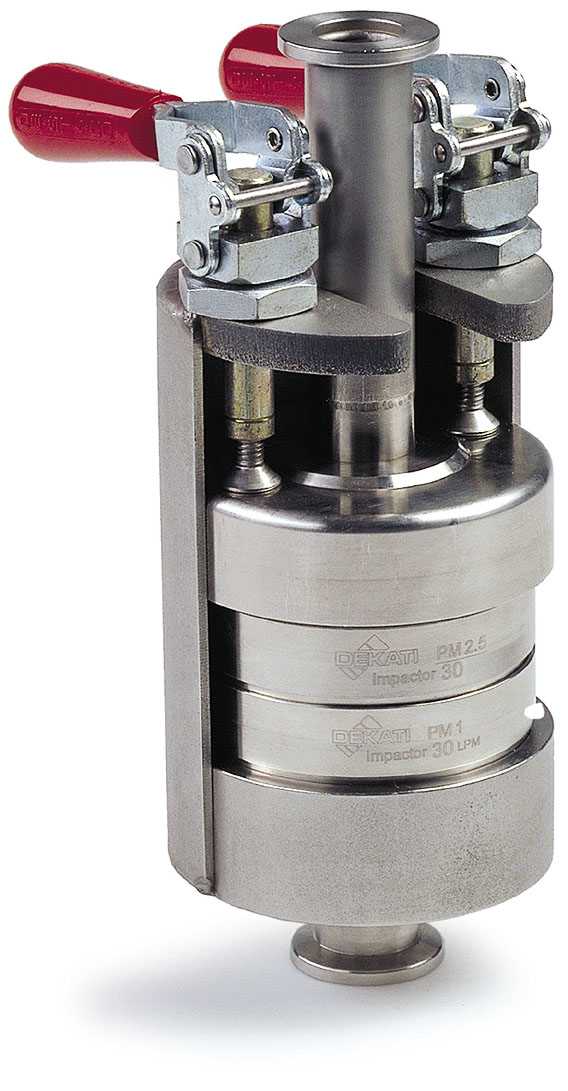

Model PM 10 Gravimetric Impactor
It collects only dust in PM10, PM2.5, PM1 at the same time with a impactor
- PM10, PM2.5 two stage
-
- PM10,PM1 two stage it can be used between PM10,PM1 two stages
- Measuring PM10, PM2.5, PM1 3 stage
- Lightweight: 2,8 kg
- Sample flow: 10,20,30 L/m
- Operational temperature range:0-200 degrees C
- Optional specification based on sample flow
*

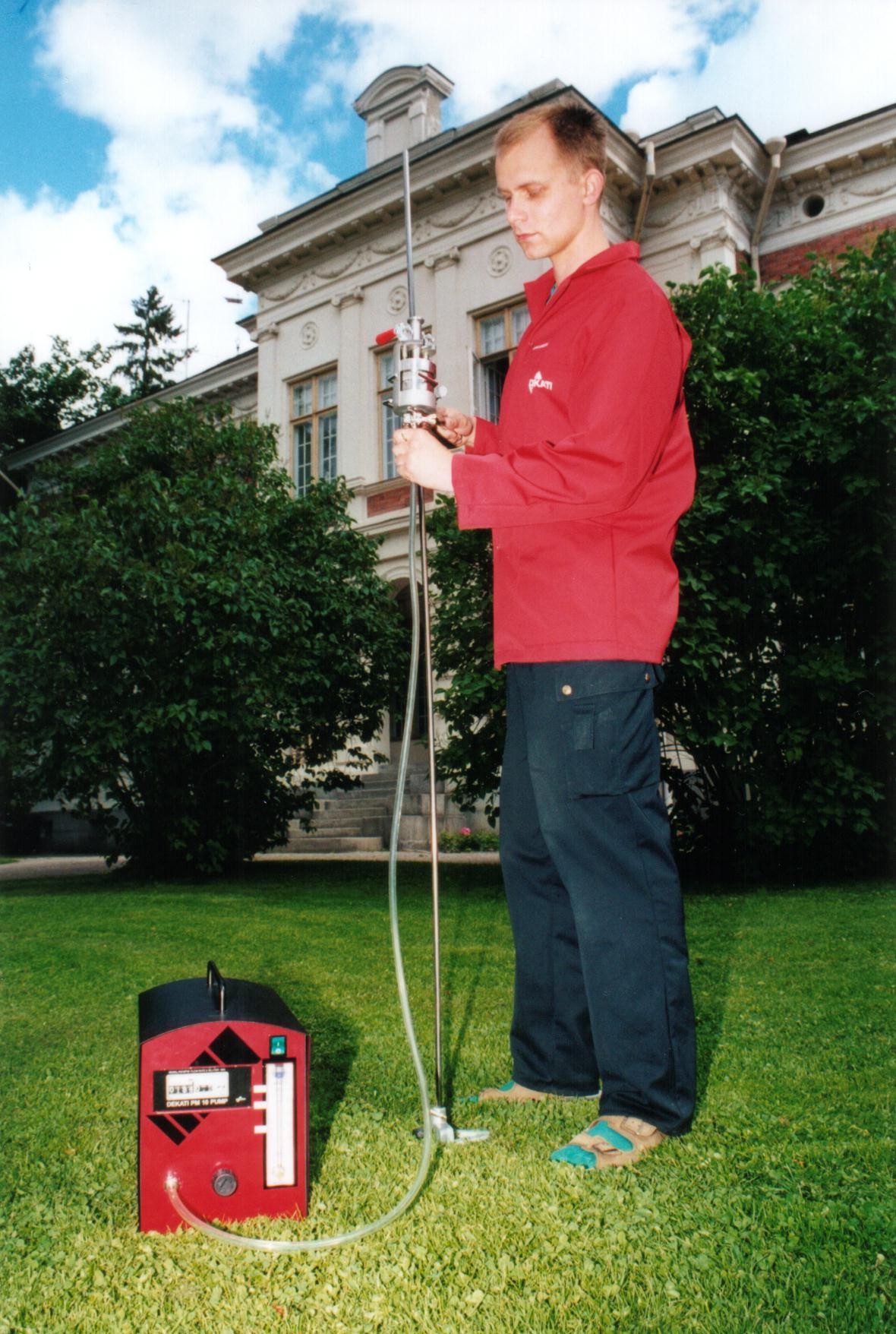

Below image: actual measurement image and accessory

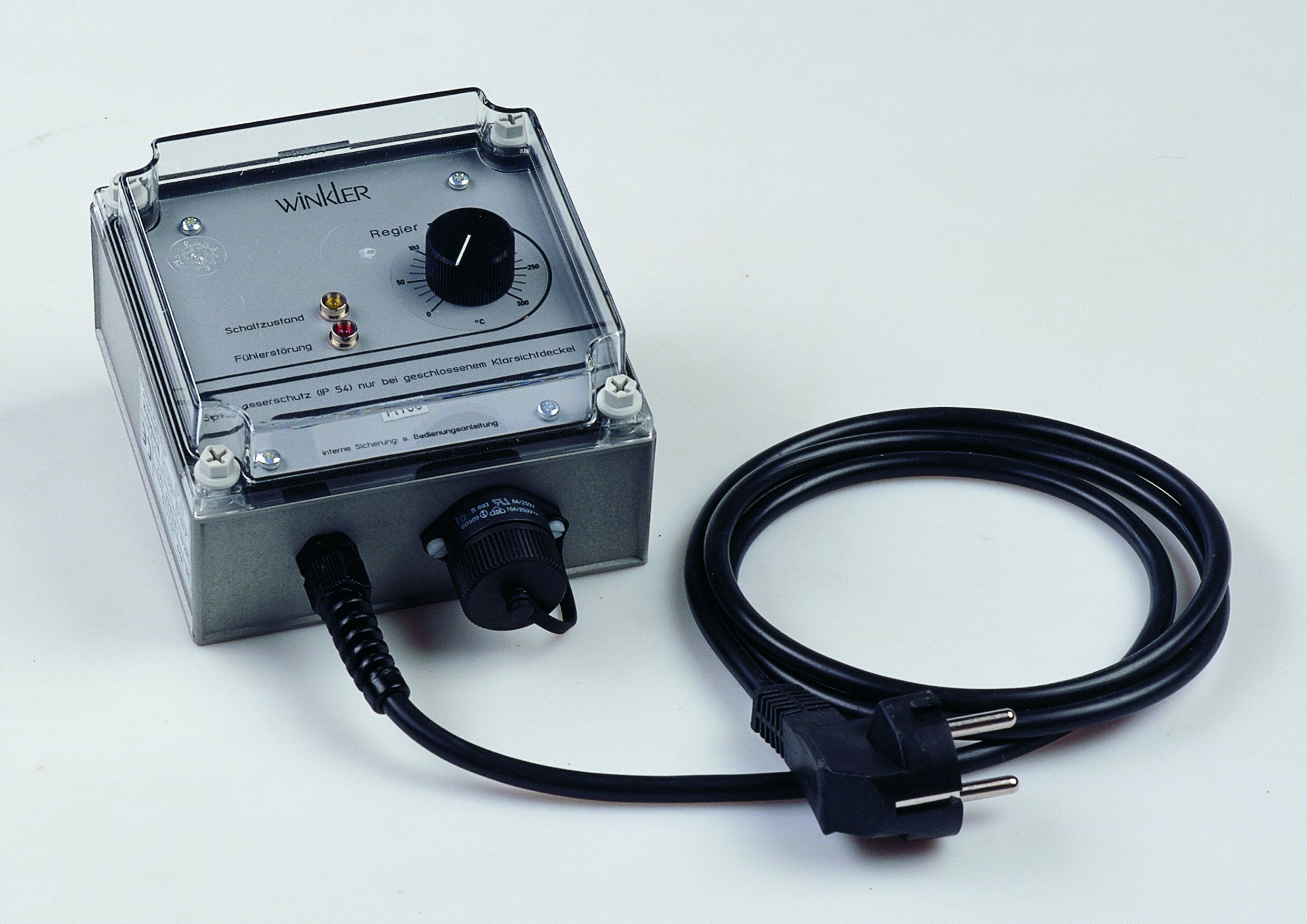

Measurement image /Cyclone/Temperature Controller/

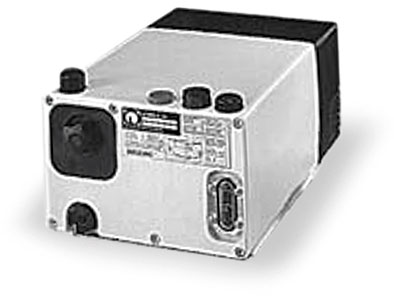

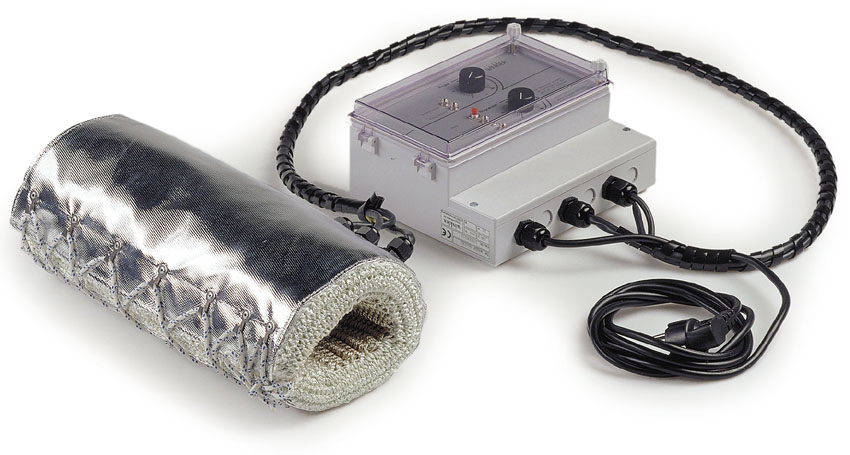

Sampling pump/Heating Matte & Controller

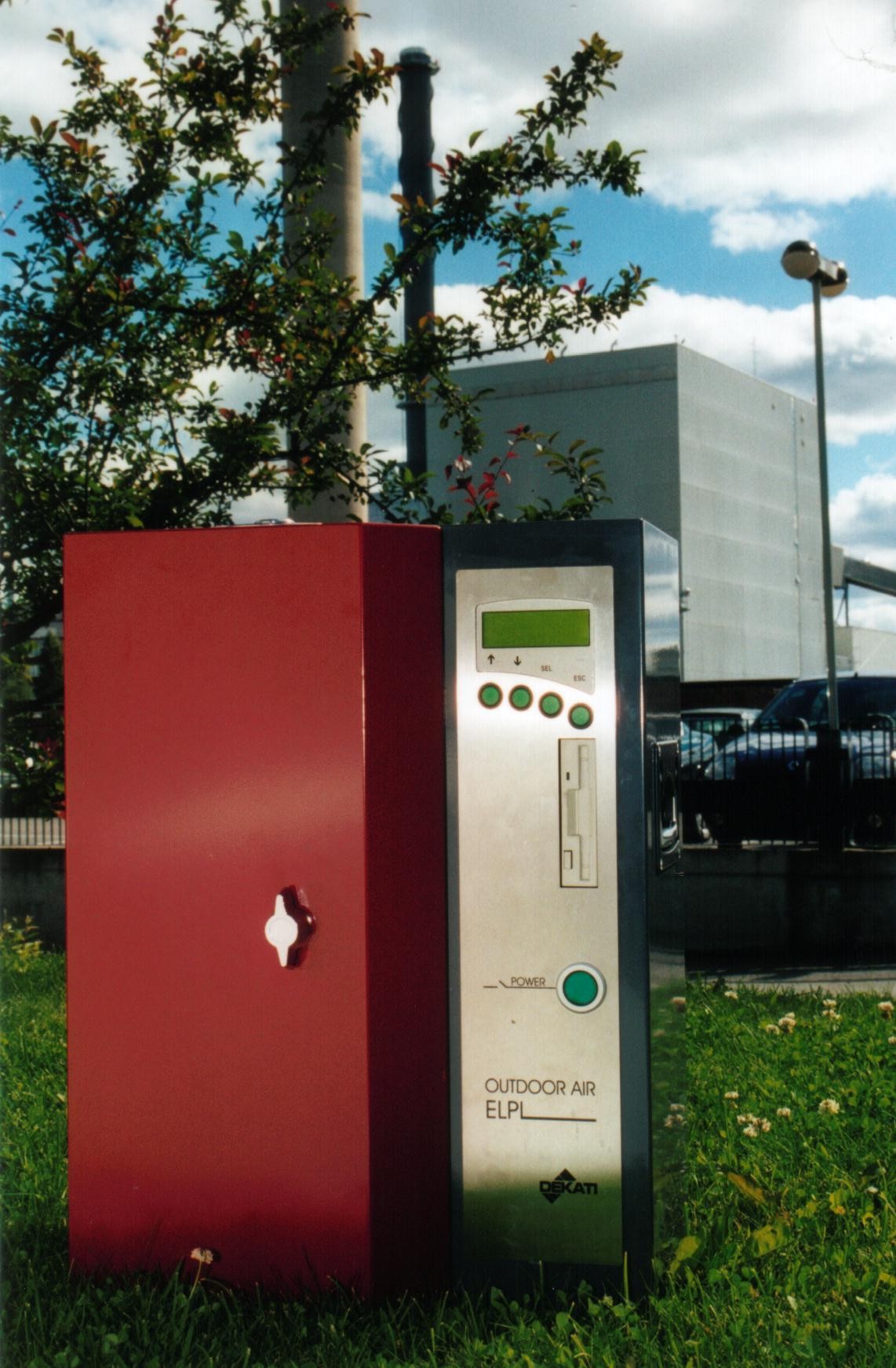

Out Door Real time Low Pressure Impactor :
Continuously measuring instrument for fine dust in the air in real-time
Particle size range :0.03- 10 Micron
12 stages separation of 12 stages impactor sample flow: 30 L/m
sample calibration: 25mm
Low pressure range : 100mbar
Pump flow: 21m3/h at 100mbar
Operational temperature: 5-40 degrees C
Operational humidity: 0-60% RH
Reaction time: within 5 seconds
Data gathering: PC operation
Size: 570 x 420 x 260 mm
Weight: 37 kg

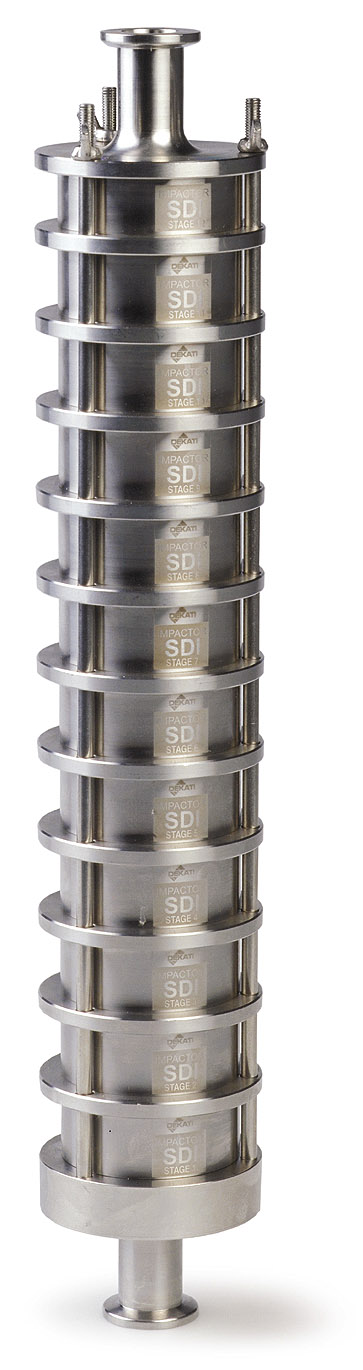

Small Deposite Area Impactor
Particle size range: 0.045-8.5 Micro
Particle measuring calibration : 25 mm
Low pressure range : 135 mbar
Flow range: 11L/m
12 stages
OPperational temperature : -15 - 120 degrees C
weight: 3.5 kg
Dimensions of the impactor: 96 x 395 mm
6 -7 m3/h 135 mbar
Material: Stainless steel
- PIXI, XRF particle analysis
- Ion chromatograph graph analysis
- Oorganic carbon particle analysis
- Dust mass spectrometry
- Analysis for particle background level in clean area
